Mobile Weighbridge

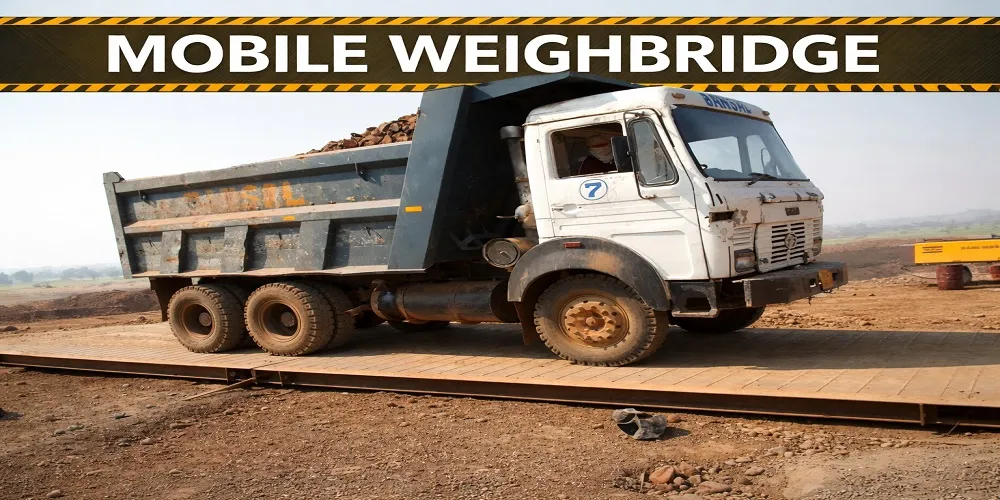

Mobile weighbridges are foundationless systems designed for temporary or seasonal use. They require a smooth and hard surface and can be supplied with ramps or without ramps depending on site requirements.
Vepro manufactures standard and custom weighing systems using modern technology, computerized analysis, quality control, and pre-delivery testing. Warranty and AMC terms are finalized per client and project scope, with a minimum one-year warranty usually provided.
Features
- Foundationless design
- Suitable for temporary sites
- Multi-modular platform in required length or width
- Capacity range from 5 MT to 200 MT
Selection notes
Choose mobile weighbridges for seasonal procurement, temporary project sites, and locations where permanent civil work is not practical. The important site requirement is a smooth, hard surface, because the system is designed to reduce foundation work while still giving reliable vehicle weighing.
Applications
- Cane collection centers
- Agricultural procurement points
- Mining and project sites
- Temporary industrial yards
Standard platform sizes
| Platform size | Equivalent size | Capacity | Graduation | Load cells |
|---|---|---|---|---|
| 4.86 x 2.4 m | 16' x 8' | 10, 15 ton | 2, 5 kg | 4 |
| 6.1 x 2.4 m | 20' x 8' | 15 ton | 2, 5 kg | 4 |
| 6.7 x 3 m | 22' x 8' | 10, 15 ton | 5 kg | 4 |
| 7.5 x 3 m | 25' x 10' | 50, 80 ton | 5, 10 kg | 4 |
| 9 x 3 m | 30' x 10' | 50, 80 ton | 5, 10 kg | 6 |
| 10 x 3 m | 33' x 10' | 60, 80 ton | 5, 10 kg | 6 |
| 12 x 3 m | 40' x 10' | 60, 80, 100 ton | 10 kg | 6 |
| 15 x 3 m | 50' x 10' | 60, 80, 100, 120 ton | 10, 20 kg | 8 |
| 16 x 3 m | 52' x 10' | 60, 80, 100, 120 ton | 10, 20 kg | 8 |
| 18 x 3 m | 60' x 10' | 100, 120 ton | 10, 20 kg | 8 |
| 20 x 3 m | 66' x 10' | 100, 120, 150 ton | 10, 20 kg | 10 |
Custom manufacturing is available according to customer specifications.
