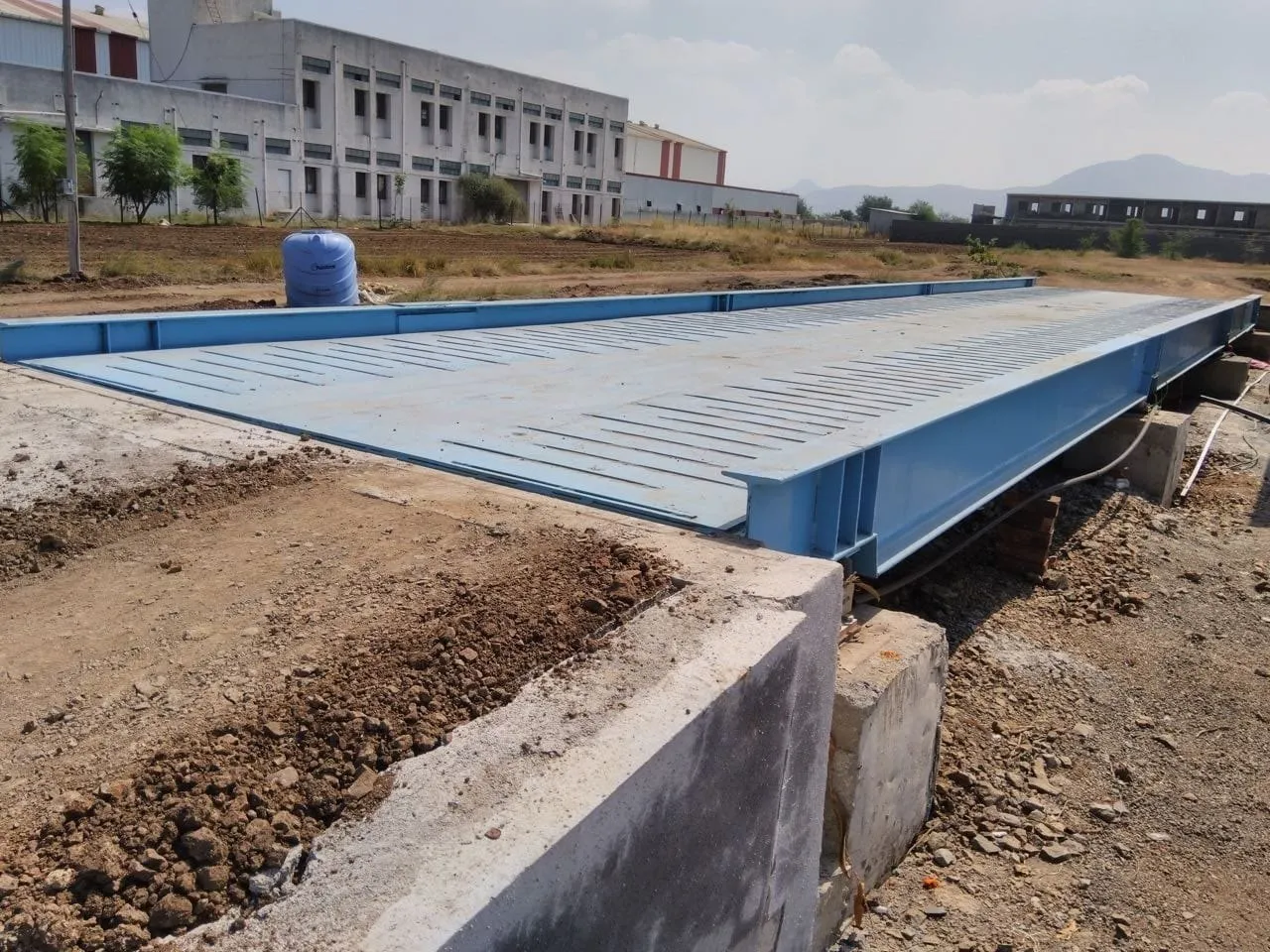

Pitless Electronic Weighbridge
Pitless electronic weighbridges are suitable where enough approach space is available and maintenance access is important. The platform is visible above ground level, vehicle movement is from the front and back, and the structure is easier to inspect because the system is surface mounted.
Vepro manufactures standard and custom weighing systems using modern technology, computerized analysis, quality control, and pre-delivery testing. Warranty and AMC terms are finalized per client and project scope, with a minimum one-year warranty usually provided.
Features
- Side support beam structure
- Above-ground platform for easier maintenance
- Capacity range from 5 MT to 200 MT
- Suitable for factories, sugar mills, logistics yards, and public weighbridges
Selection notes
Choose pitless when the site has enough straight approach length and the customer wants faster access to load cells, junction boxes, and platform components during service visits. For sugar mills and logistics yards, pitless layouts are often easier to maintain during high-traffic seasons because technicians do not need to work inside a pit.
Applications
- Sugar mill cane truck weighing
- Industrial dispatch and receiving
- Mining and cement vehicle weighing
- High-traffic public weighbridge sites
Standard platform sizes
| Platform size | Equivalent size | Capacity | Graduation | Load cells |
|---|---|---|---|---|
| 4.86 x 2.4 m | 16' x 8' | 10, 15 ton | 2, 5 kg | 4 |
| 6.1 x 2.4 m | 20' x 8' | 15 ton | 2, 5 kg | 4 |
| 6.7 x 3 m | 22' x 8' | 10, 15 ton | 5 kg | 4 |
| 7.5 x 3 m | 25' x 10' | 50, 80 ton | 5, 10 kg | 4 |
| 9 x 3 m | 30' x 10' | 50, 80 ton | 5, 10 kg | 6 |
| 10 x 3 m | 33' x 10' | 60, 80 ton | 5, 10 kg | 6 |
| 12 x 3 m | 40' x 10' | 60, 80, 100 ton | 10 kg | 6 |
| 15 x 3 m | 50' x 10' | 60, 80, 100, 120 ton | 10, 20 kg | 8 |
| 16 x 3 m | 52' x 10' | 60, 80, 100, 120 ton | 10, 20 kg | 8 |
| 18 x 3 m | 60' x 10' | 100, 120 ton | 10, 20 kg | 8 |
| 20 x 3 m | 66' x 10' | 100, 120, 150 ton | 10, 20 kg | 10 |
Custom manufacturing is available according to customer specifications.
